Drip system for vegetable garden – Woven Structure Detail

HDPE Woven Tape

FCP03

HDPE woven micro-spray tape is made of a dense HDPE woven outer layer with a thick LDPE inner liner. The tape has micro-spray outlets along its length that provide strip irrigation under low pressure. It remains flexible and elastic even at low temperatures and is used for orchard irrigation, vegetables, seedling beds, flowers and protected cultivation. The tape can be laid on the surface or under greenhouse film, mulch film, or weed-control fabric.

Quantity:

Contact Now

add to cart

HDPE Woven Micro-Spray Irrigation Hose Tape | Reinforced Layer with LDPE Inner Liner

This drip pipetape is made from a dense HDPE woven outer layer combined with a thickened LDPE inner liner. It is produced from high-quality PE raw material. The reinforced structure gives the tape high strength and pressure resistance, while the inner liner keeps it soft and elastic even when conveying liquids at low temperatures. Along the tape are small micro-spray outlets that deliver a fine, even sheet of water over the crop surface. It is suitable for vegetable fields, seedling beds, nurseries and under-tree irrigation in orchards, and can be laid together with mulch or greenhouse covers.

Product Advantages

1.Dense HDPE Woven Layer + Thick LDPE Liner – High strength, pressure-resistant structure that stays flexible in cold conditions.

2.High-Quality PE Raw Material – Ensures durability, UV resistance and long service life.

3.Integrated Micro-Spray Outlets – Provides uniform spray distribution for seedlings and light irrigation.

4.Low-Pressure Operation – Works with small pumps, saving energy compared with conventional sprinklers.

5.Custom Specifications – Width, outlet spacing, spray pattern and flow rate can be produced to order to match crop requirements.

6.Easy Handling – Light weight, easy to install and retrieve at the end of the season; can be laid on the surface or under mulch for protection.

7.Drip System for Vegetable Garden - Supplies water slowly at the root zone, suitable for daily watering of vegetable beds.

Product Details

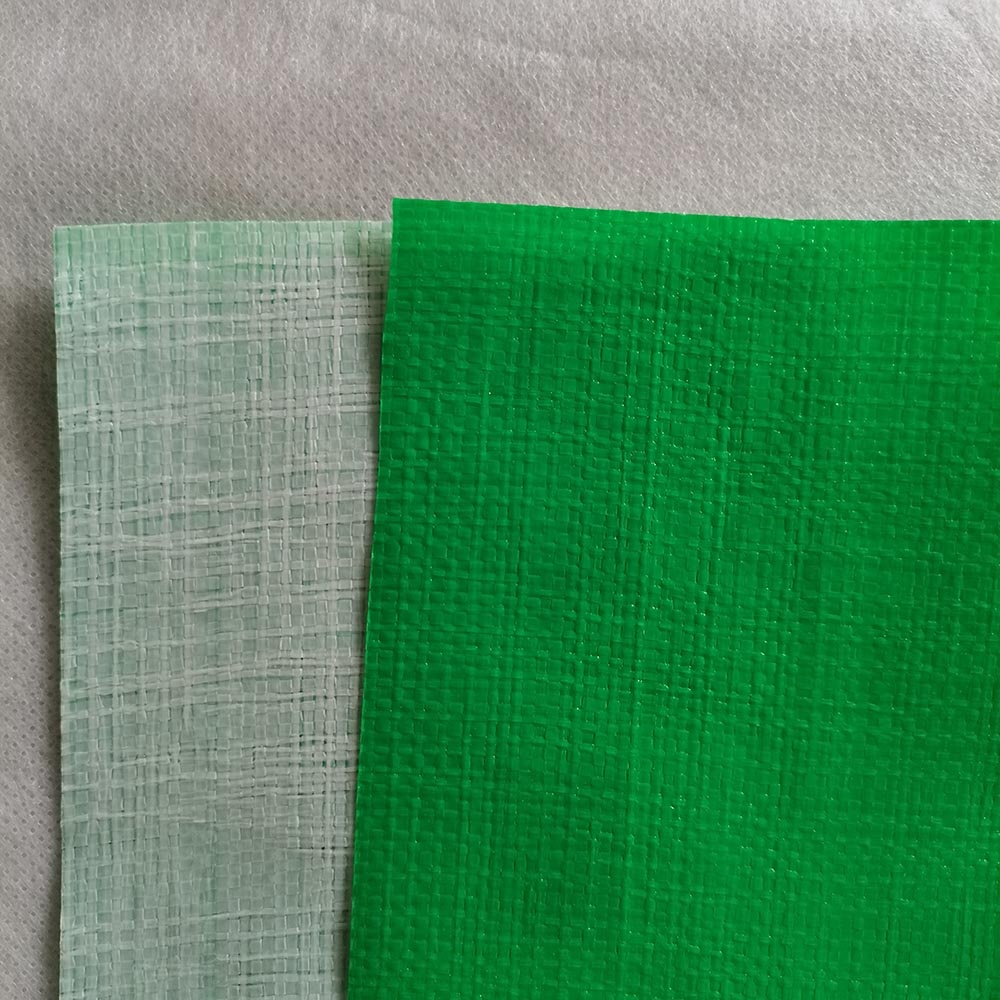

Drip pipe – HDPE Woven Layer with LDPE Inner Liner

Dense HDPE woven layer combined with thick LDPE inner liner for high strength and pressure resistance.

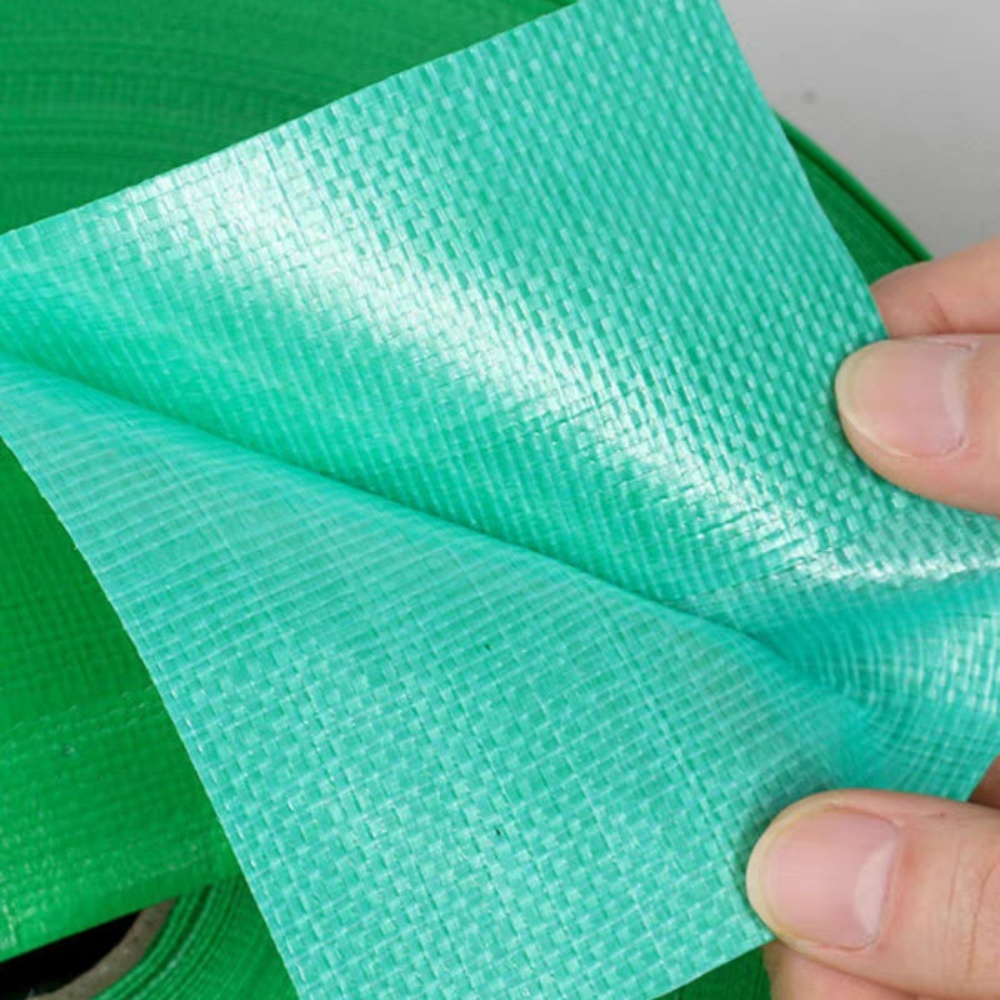

Drip pipe – Waterproof and Pressure-Resistant Performance

Strong waterproof and pressure-resistant performance for reliable liquid transport.

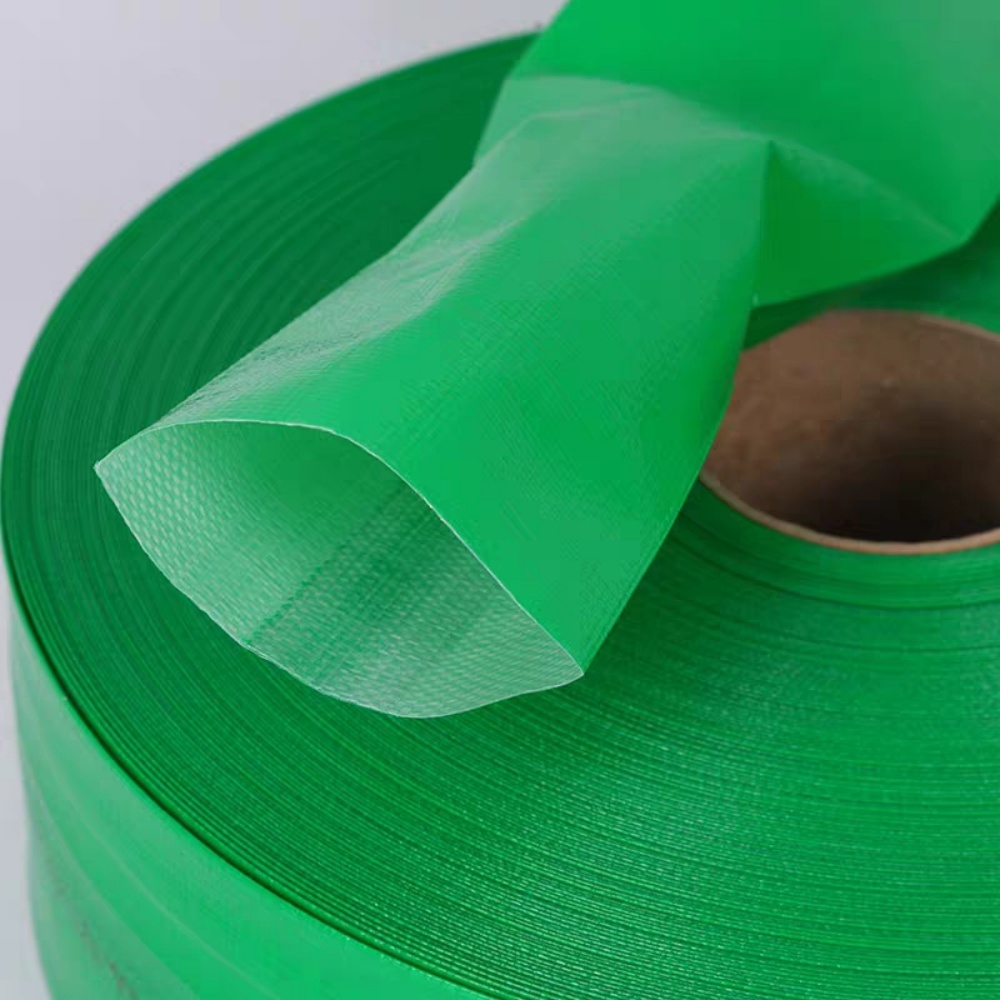

Drip pipe – Customizable Inner Diameter

Inner diameter of the woven hose can be produced according to customer requirements.

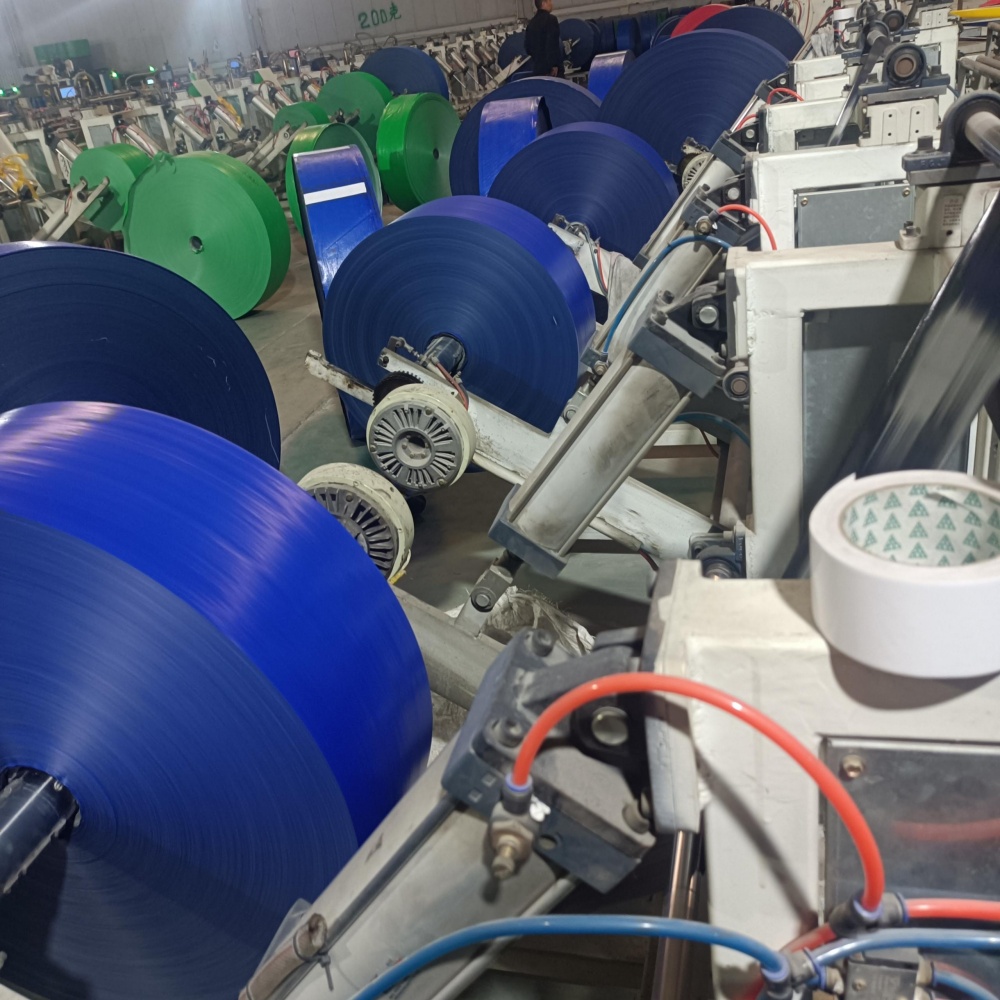

Drip pipe – Customizable Color, Size and Weight

Color, size and weight can be specified and produced as requested.

Product Specifications

Item Name	Color	Inner Diameter		Working Pressure		Brust Pressure		Length	Weight
Item Name	Color	inch	mm	bar	psi	bar	psi	m	gsm
PE Tarpaulin Irrigation Tape	Green Red Yellow Blue	1	25	4	60	16	240	50 100 Customized	180 200 230 380
		1-1/4	32	4	60	16	240
		1-1/2	38	4	60	16	240
		2	50	4	60	12	180
		2-1/2	65	4	60	12	180
		3	75	4	60	12	180
		3-3/4	95	4	60	12	180
		4	100	4	60	12	180
		4-1/2	115	4	60	12	180
		5	125	4	60	12	180
		6	150	3	45	9	135
		7	175	3	45	9	135
		8	200	3	45	9	135
		10	250	3	45	9	135
